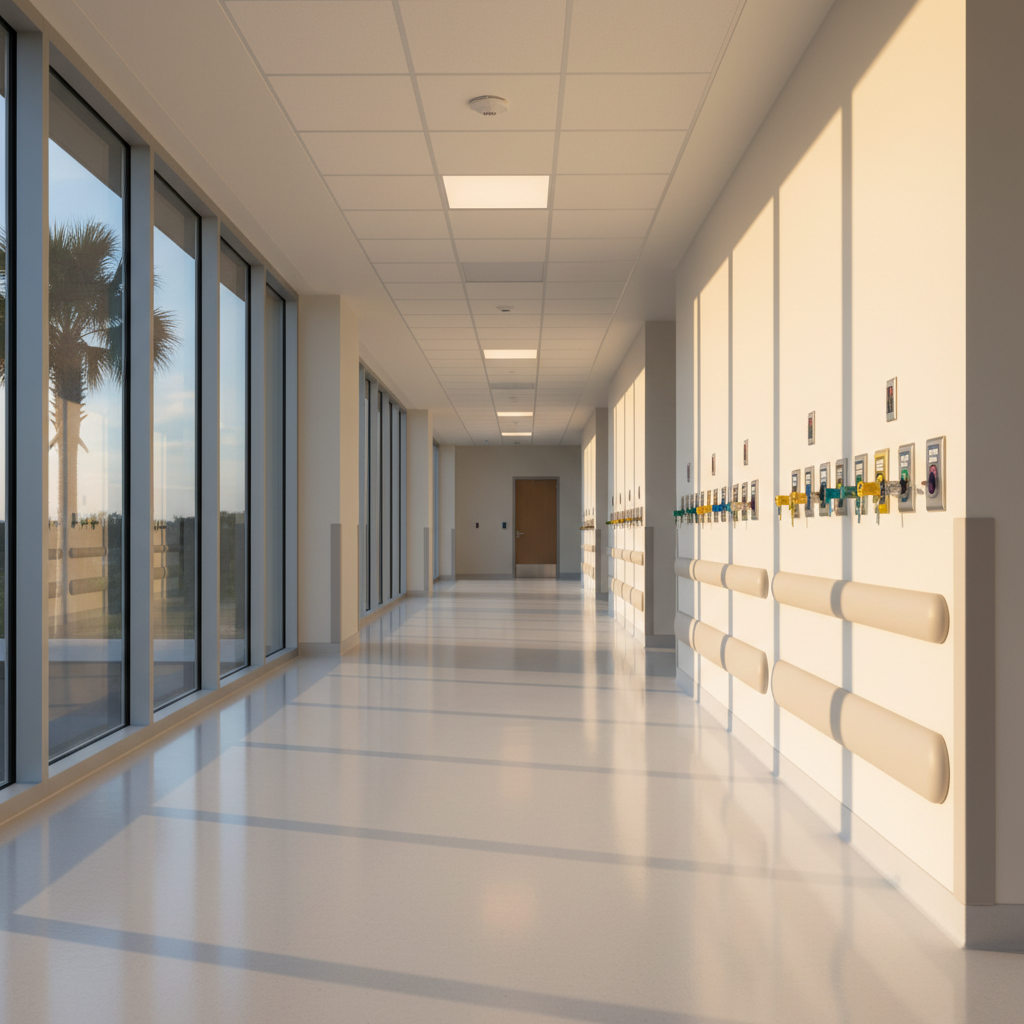

Medical Gas Installation in Jacksonville: A Playbook for New Construction

Building a new healthcare facility in Jacksonville or anywhere in Duval County is a complex undertaking. Among the most critical systems you'll install is the medical gas piping network. These silent, life-sustaining lines for oxygen, medical air, and vacuum are the bedrock of patient care. Getting the installation right from day one is not just a matter of operational efficiency—it's a matter of patient safety and stringent regulatory compliance.

This guide is your playbook for a successful medical gas installation in Jacksonville. We'll walk you through the entire process, from pre-construction design to the final verification required by the Florida Agency for Health Care Administration (AHCA). You will learn how to navigate the specific codes, avoid common pitfalls, and leverage local expertise to save significant costs. As a Florida-headquartered company, Medical Testing Solutions is intimately familiar with the unique requirements of building and verifying facilities in our state.

The Stakes: Why Perfect Installation is Non-Negotiable in Jacksonville

Unlike standard plumbing or HVAC, medical gas systems have zero tolerance for error. A single contaminated pipe, a crossed connection, or an improperly set alarm can have catastrophic consequences. This is why the installation, testing, and verification process is governed by a strict set of codes and standards, primarily NFPA 99 (Health Care Facilities Code) and the ASSE 6000 series of professional qualifications.

For facilities in Jacksonville, including major systems like UF Health Jacksonville and Baptist Health, compliance isn't just a suggestion—it's a requirement for licensure. Every new medical gas system must be independently verified by an ASSE 6030 Certified Medical Gas Verifier before it can be used for patient care. This final report is a key component of your submission to AHCA and for review by The Joint Commission (TJC).

Why this matters for compliance: A failed verification can halt your facility's opening, leading to devastating project delays and cost overruns. The verification report, which must satisfy AHCA OPS Form 3110 and Chapter 59A of the Florida Administrative Code, is the ultimate proof that your system is safe and compliant. Starting with a compliant medical gas installation is the only way to guarantee a smooth verification.

Phase 1: Pre-Construction Planning & System Design

A successful installation begins long before the first pipe is laid. The design phase is critical for ensuring the system is appropriately sized, configured, and equipped for your facility's specific needs.

Sizing and Scoping Your System

The first step is determining the types and volume of gases needed. A typical hospital system includes:

• Oxygen (O2): For respiration and life support.
• Medical Air (MedAir): A compressed air source, supplied by a dedicated medical air compressor, that is clean and dry.
• Medical Vacuum (Vac): Used for suctioning and drainage.
• Nitrous Oxide (N2O): For anesthesia and pain management.
• Waste Anesthetic Gas Disposal (WAGD): Evacuates anesthetic gases exhaled by patients.

An engineering firm specializing in healthcare design will calculate the required flow rates and pipe sizes based on the number of patient rooms, operating suites, and other terminal locations.

Phase 2: The Installation Build-Out (The ASSE 6010 Standard)

This is where the physical system takes shape. All installation work must be performed by tradespersons who are ASSE 6010 Certified Medical Gas Installers. This certification ensures they are proficient in the specific techniques required for these critical systems, most notably the brazing process.

During installation, the ASSE 6010 installer is responsible for:

• Proper Brazing: All copper pipe joints must be brazed, not soldered, in a nitrogen-purged environment to prevent oxidation inside the pipe, which could otherwise introduce contaminants into the system.
• Correct Piping & Labeling: Using the correct grade of copper pipe and ensuring every line is meticulously labeled according to NFPA 99 standards.
• Component Placement: Correctly installing source equipment (manifolds, compressors), alarms, zone valve boxes, and terminal outlets.
• Initial Testing: The installer performs initial pressure tests to check the integrity of their own work before the final verifier arrives on site.

Phase 3: The Final Step: Independent ASSE 6030 Verification

Once the installation is 100% complete, it's time for the most crucial phase: third-party verification. An ASSE 6030 Certified Verifier, who must be independent of the installer, performs a comprehensive battery of tests to ensure the system is safe, pure, and functions exactly as designed.

This is a core service provided by the team at Medical Testing Solutions. The medical gas verification process is exhaustive and includes:

• System Purity Testing: Ensuring the gas is what it purports to be (e.g., Oxygen is >99% pure) and free of contaminants.
• Cross-Connection Testing: Confirming that the gas coming out of the oxygen outlet is actually oxygen, the air outlet is air, and so on.
• Pressure & Flow Tests: Verifying that the system maintains correct pressure and flow rates at every terminal outlet.
• Alarm & Warning System Testing: Ensuring all local and master alarms function correctly under fault conditions.

The verifier documents every test in a detailed report that becomes your certificate of compliance for the AHCA and other regulatory bodies.

Florida's Unique Compliance Landscape & Cost Advantages

Jacksonville facilities face specific state-level requirements. With our headquarters at 501 East Las Olas Blvd, Fort Lauderdale, FL 33301, Medical Testing Solutions is a true Florida company, uniquely positioned to help you navigate these rules and save you money.

The Florida Advantage: Why Local Saves You 10-25%

Many certified verification firms fly in from out of state, passing their travel and lodging costs on to you. By using a Florida-based team, those costs disappear entirely.

For any project in Jacksonville, our South Florida crews can be dispatched quickly without incurring these extra fees, providing a significant and immediate cost advantage. Explore our services across the state, from our home base in Fort Lauderdale to the entire state of Florida.

Hurricane & Storm Re-Verification

NFPA 99 (Section 5.1.12) requires that a medical gas system be re-verified if it loses pressure for any reason, including after a hurricane or major storm that causes damage. Our Florida presence means we can mobilize teams for emergency re-verification faster than anyone, getting your facility back online safely and quickly.

New Construction Installation Checklist

Use this step-by-step guide to manage your Jacksonville installation project.

• Finalize Engineering Prints: Ensure your architectural and engineering designs are complete and approved.
• Engage an ASSE 6010 Installer: Hire a certified and reputable installation contractor.
• Schedule the ASSE 6030 Verifier: Book your independent verifier in advance. Medical Testing Solutions can be scheduled months ahead to align with your project timeline.
• Complete All Installation Work: The system must be 100% complete before verification can begin.
• Perform and Pass Verification: The verifier conducts all NFPA 99 required tests.
• Submit Documentation to AHCA: Use the verifier's final report for your submission to the Agency for Health Care Administration.
• Plan Annual Maintenance: Once operational, schedule your annual medical gas inspections to maintain TJC and NFPA 99 compliance.

Frequently Asked Questions about Medical Gas Installation in Jacksonville

Q: What codes govern medical gas installation in Jacksonville?

A: The primary code is NFPA 99, Health Care Facilities Code. Additionally, installers must be certified to the ASSE 6010 standard, and verifiers to the ASSE 6030 standard. All work must also comply with Florida AHCA requirements.

Q: Who can install medical gas systems?

A: Only plumbers or pipefitters who hold a current ASSE 6010 Medical Gas Installer certification are qualified to perform the installation and brazing of medical gas piping.

Q: What is the difference between installation (ASSE 6010) and verification (ASSE 6030)?

A: Installation is the physical building of the system. Verification is the independent, third-party testing of the completed system to ensure it is safe, pure, and functions correctly before it is used for patient care.

Q: How does using a Florida-based company like MTS save money?

A: MTS is headquartered in Fort Lauderdale, FL. For projects anywhere in Florida, including Jacksonville, we do not charge for travel time, airfare, lodging, or per-diem, saving our clients 10-25% compared to out-of-state firms.

Q: What documentation is needed for AHCA approval in Florida?

A: You will need the final verification report from an ASSE 6030 verifier, which documents that the system has passed all tests according to NFPA 99. This is a key part of the AHCA OPS Form 3110 submission for new facilities.

Your Partner for Compliant Installation in Jacksonville

Ensuring your new facility's medical gas systems are installed and verified correctly is a complex but manageable process. By following this playbook and partnering with an experienced, certified, and local Florida-based team, you can ensure a smooth, compliant, and cost-effective project.

Ready to plan your new construction project in Jacksonville? Contact the Florida-based experts at Medical Testing Solutions for a seamless, compliant installation from start to finish. Call our Fort Lauderdale office today at +1 (754) 315-1078 or request a quote online to ensure your project is done right.

'''

---

This article is provided for educational purposes and reflects industry standards as of publication. Always verify against current NFPA 99, CGA, and AHJ requirements. Medical Testing Solutions is ASSE-certified and ready to help — contact us for facility-specific guidance.
