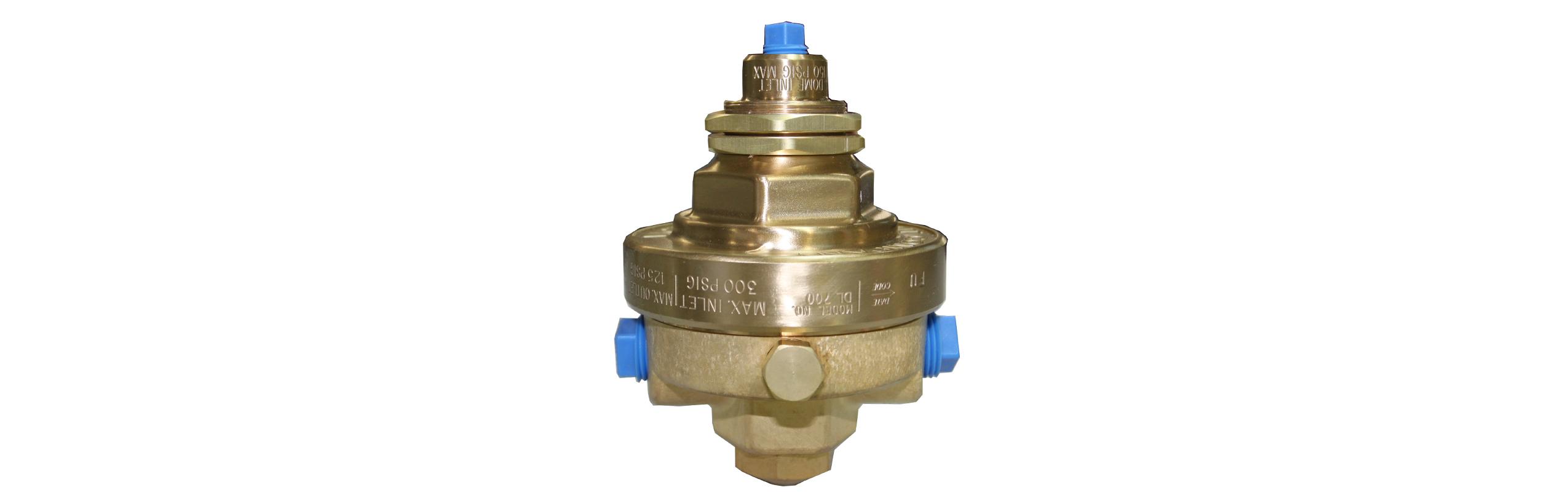

Amico Dome Loaded Regulator M2-IND-PIL-REG

SKU: M2-IND-PIL-REG · MPN: M2-IND-PIL-REG · In Stock

The Amico Dome Loaded Series Regulator shall be for a line supply, of a heavy duty type.

The Amico Dome Loaded Series Regulator shall be for a line supply and of a heavy duty type. Dimensions 3.75" W x 4" H x 5.63" D (95.3 mm x 101.6 mm x 143 mm). WEIGHT: 4 lb. 8 oz. (2.04kg) Design Construction • Forged brass body & housing cap • Stem type seat mechanism - fabric reinforced neoprene • 1/2" NPT(F) inlet and outlet ports. Performance Maximum inlet pressure 300 psi Maximum outlet pressure 125 psi Temperature operating range 0-140° F Dome load inlet size 1/4" NPT(F) Maximum dome load pressure 125 PSIG.

Specifications

MPN:

M2-IND-PIL-REG
